| ब्रांड नाम: | GoreLink |
| मॉडल संख्या: | GL-FB12-1SC |
| एमओक्यू: | बातचीत योग्य |
| प्रसव का समय: | 1-7 कार्यदिवस |
| भुगतान की शर्तें: | टी/टी, वेस्टर्न यूनियन, पेपैल |

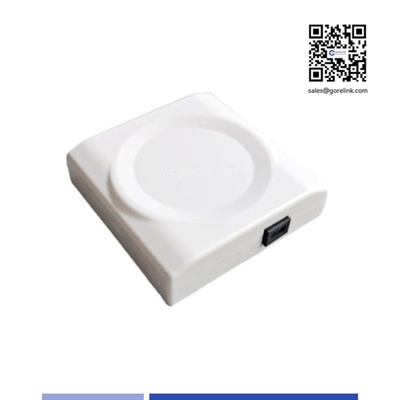

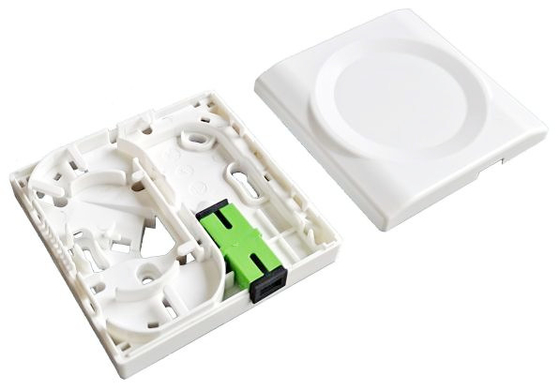

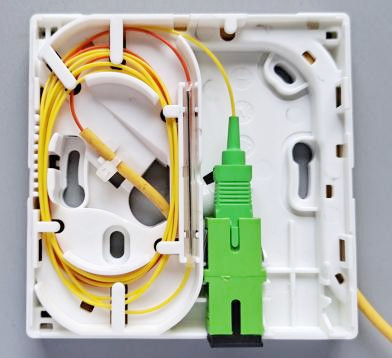

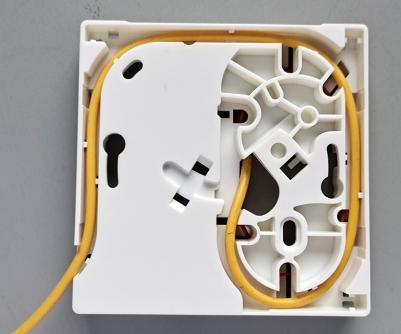

Gorelink Fiber Surface Box is designed to a termination point for the feeder cable to connect with drop cable in FTTx communication network system. It cancan be used indoor or outdoor environment. It can be used to protect the connection between cable and pigtail and optic fiber terminations in the optic access network. It provides a safe and organized way to connect fiber optic cables to devices such as routers, switches, and other networking equipment.
Application
FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks
General Specification
|
Design |
Fiber Wall Box |
|
Material |
ABS |
|
Mounting Type |
Wall Mounting |
|
Max. Capacity |
2 Fibers |
|
Suitable Cable |
4.0mm & 2*3mm Drop cable |
|
Suitable Adapter |
LC/SC |
|
Loaded |
SC/APC SM Simplex adapter without flange |
|
Insertion Loss |
≤ 0.3dB |
|
Return Loss |
≥ 55dB |
|
Color |
White |
|
Dimension |
80x80x20.5mm |
|
Operating Temperature (°C) |
-20 ~ +75 |
|
Storage Temperature (°C) |
-40 ~ +85 |
Ordering Information
|
PART NO. |
DESCRIPTION |
|
GL-FB12-1SC |
1 Port Fiber Surface Box, SC Simplex, unloaded |
|
GL-FB12-1LC |
1 Port Fiber Surface Box, LC Duplex, unloaded |
|
GL-FB12-1SC-901 |
1 Port Fiber Surface Box, SC Simplex, Loaded SC/APC SM Simplex Adapter |
|
GL-FB12-1LC-901 |
1 Port Fiber Surface Box, LC Duplex, Loaded LC/APC SM Duplex Adapter |
|
* Customized |
|
If you need any more help, please feel free to contact us at sales@gorelink.com
|
|
