| ब्रांड नाम: | GoreLink |
| मॉडल संख्या: | GL-GYTS-896 |
| एमओक्यू: | 1000m |
| प्रसव का समय: | As per the order quantity |
| भुगतान की शर्तें: | T/T,Paypal,Western Union, |

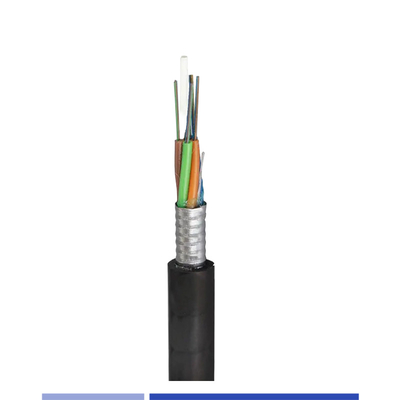

Gorelink GYTS Outdoor Fiber optic cable are designed for outside plant applications and intended for use in communication network connects requiring cable to be installed within duct systems or lashed to aerial messenger wire structures.It is metallic strength member with corrugated steel tape armor protection.The stranded loose tube design provides stable performance over a wide temperature range and is compatible with any telecommunications grade optical fiber.
Application
FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks
General Specification
|
Fiber Mode |
Singlemode G652D |
|
Fiber Count |
96 Core |
|

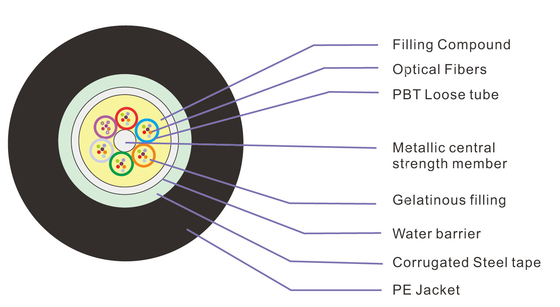

Cable structure |
Stranded Loose tube |
|
Cable Armor |
Corrugated Steel Tape Armor |
|
Strength Member |
Metallic |
|
Cable Diameter |
9.8-10.5mm |
|
Outer Jacket |
PE |
|
Cable Color |
Black |
|
Cable length |
As per the order request |
|
OPTICAL PERFORMANCE |
|
|
Attenuation(dB/km) |
≤0.36 dB @1310nm |
|
Core diameter(um) |
9±2.5 |
|
Cladding diameter(um) |
125±1.0 |
|
Wavelength |
1310nm / 1550nm |
Download Datasheet
| Outdoor Armored Fiber Optic Cable- GYTS-Singlemode |
Ordering Information
|
PART NO. |
DESCRIPTION |
|
GL-GYTS-806 |
Outdoor Armored Fiber Optic Cable,6 Fiber,Singlemode G652D,PE,Black,GYTS |
|
GL-GYTS-808 |
Outdoor Armored Fiber Optic Cable,8 Fiber,Singlemode G652D,PE,Black,GYTS |
|
GL-GYTS-812 |
Outdoor Armored Fiber Optic Cable,12 Fiber,Singlemode G652D,PE,Black,GYTS |
|
GL-GYTS-824 |
Outdoor Armored Fiber Optic Cable,24 Fiber,Singlemode G652D,PE,Black,GYTS |
|
GL-GYTS-848 |
Outdoor Armored Fiber Optic Cable,48 Fiber,Singlemode G652D,PE,Black,GYTS |
|
GL-GYTS-896 |
Outdoor Armored Fiber Optic Cable,96 Fiber,Singlemode G652D,PE,Black,GYTS |
|
GL-GYTS-8144 |
Outdoor Armored Fiber Optic Cable,144 Fiber,Singlemode G652D,PE,Black,GYTS |
|
* Customized |
|
If you need any further assistance, please feel free to contact us at sales@gorelink.com .
|
|
| ब्रांड नाम: | GoreLink |
| मॉडल संख्या: | GL-GYTS-896 |
| एमओक्यू: | 1000m |

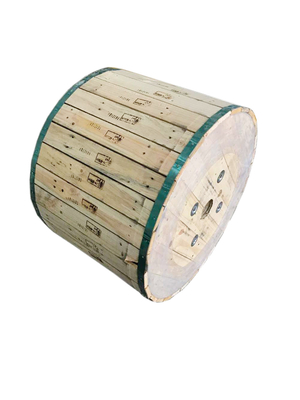

| पैकेजिंग विवरण: | Wooden Drum/Spool+Carton |
